Control elements
Touchscreen Core and Pro
The seating plan of the room forms the interface on the screen: a tap on a seat decides which image appears there.
Touch panel
What a touch panel does in a training room
A touch panel is a control panel with a touch-sensitive surface showing the seating plan of a training room; every workstation, every signal source and every function sits on it as a button of its own.
The interface is drawn up for each room individually. The arrangement, size and labelling of the buttons follow the actual seating plan, so that the row by the window also lies by the window on the panel. Anyone who knows the room knows the controls.
Two variants are available. Core switches the functions of the training system; Pro also switches equipment that does not come from EBS — projectors, displays, blinds, lighting and audio DSP — and operates several linked training rooms together.
Control interfaces

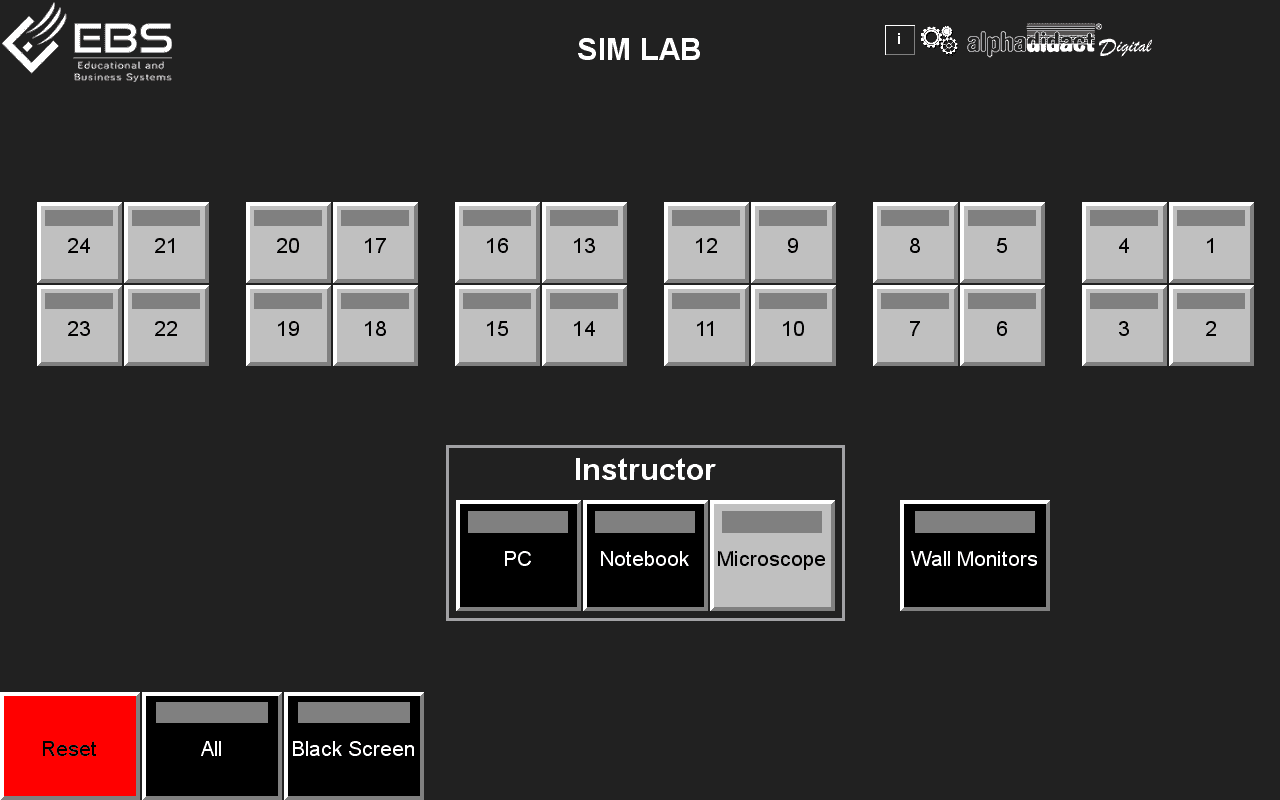

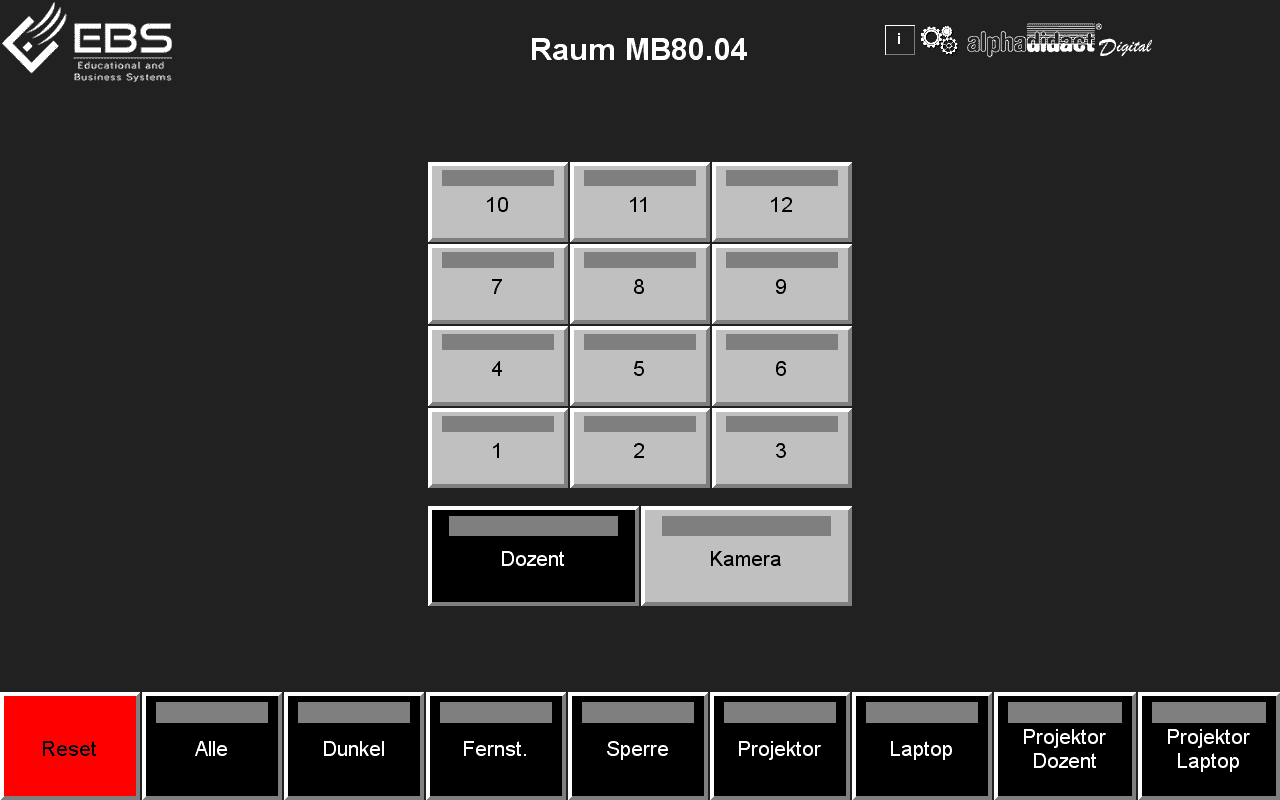

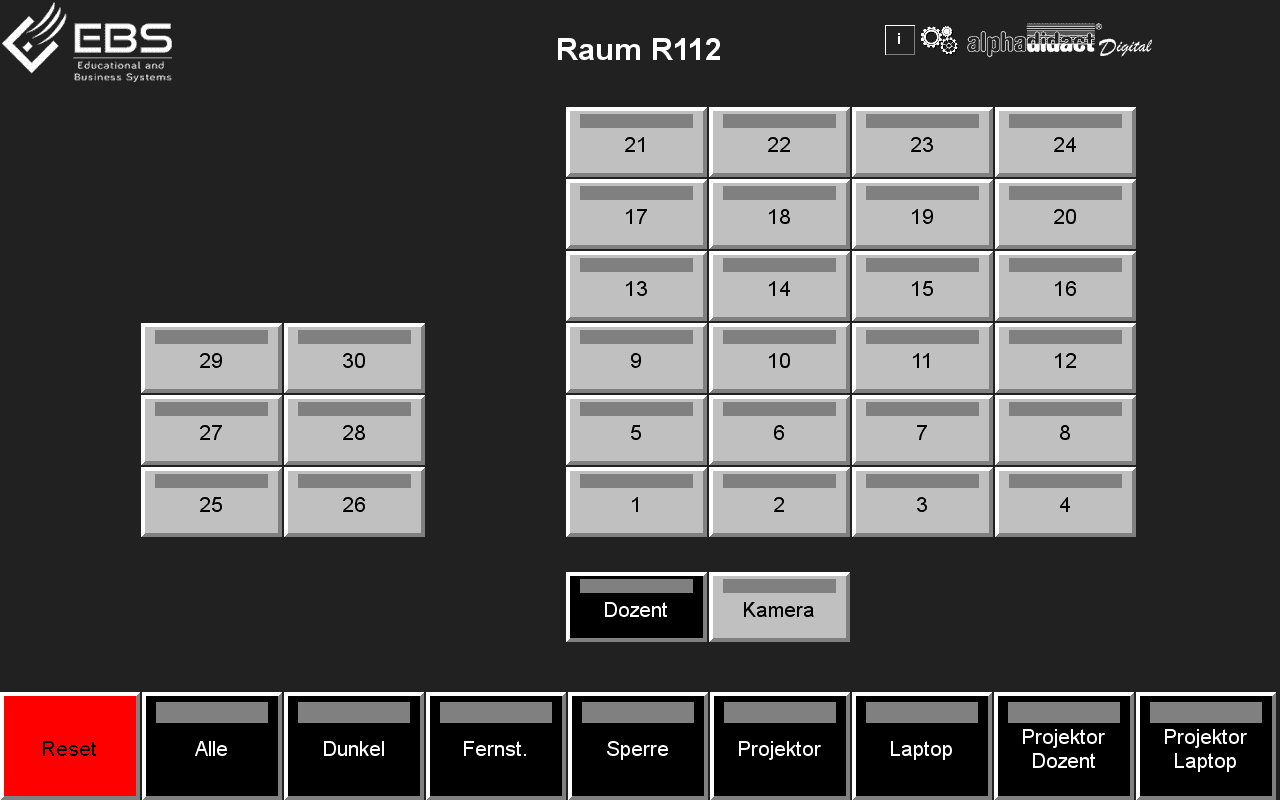

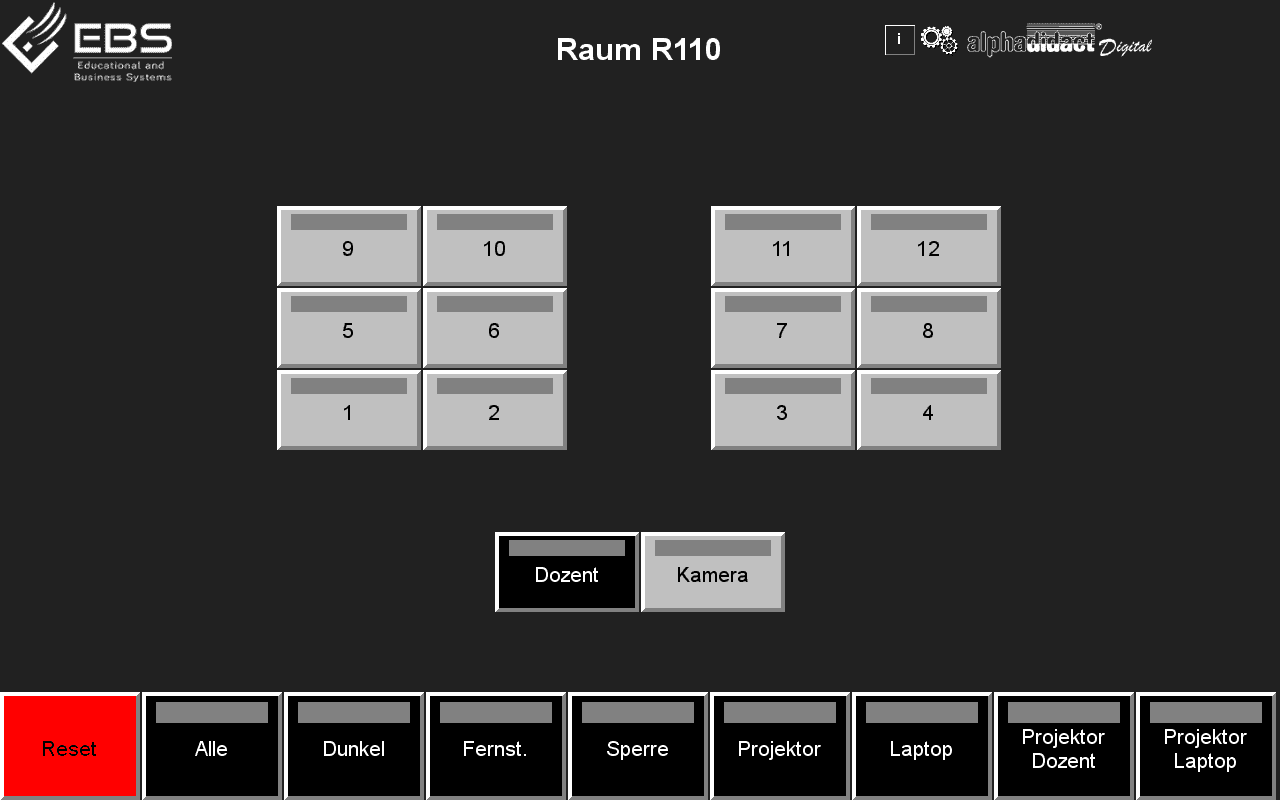

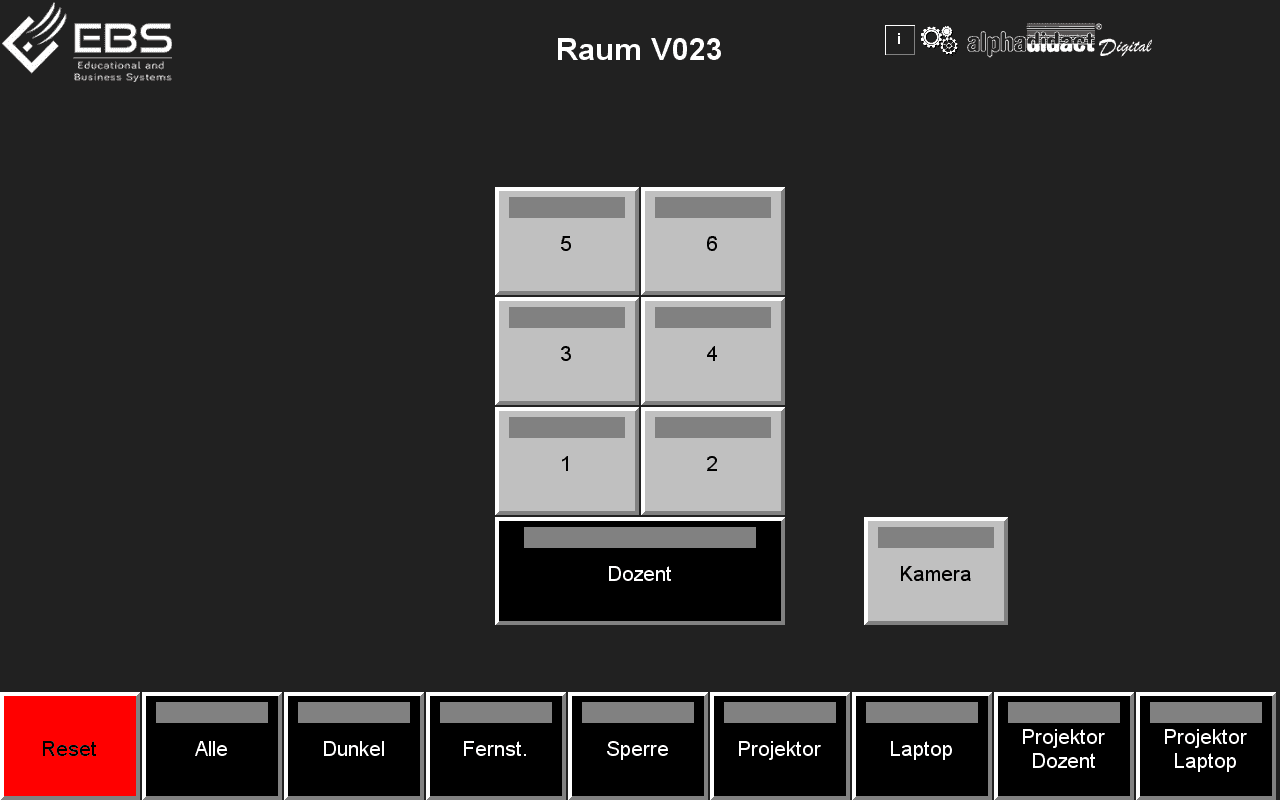

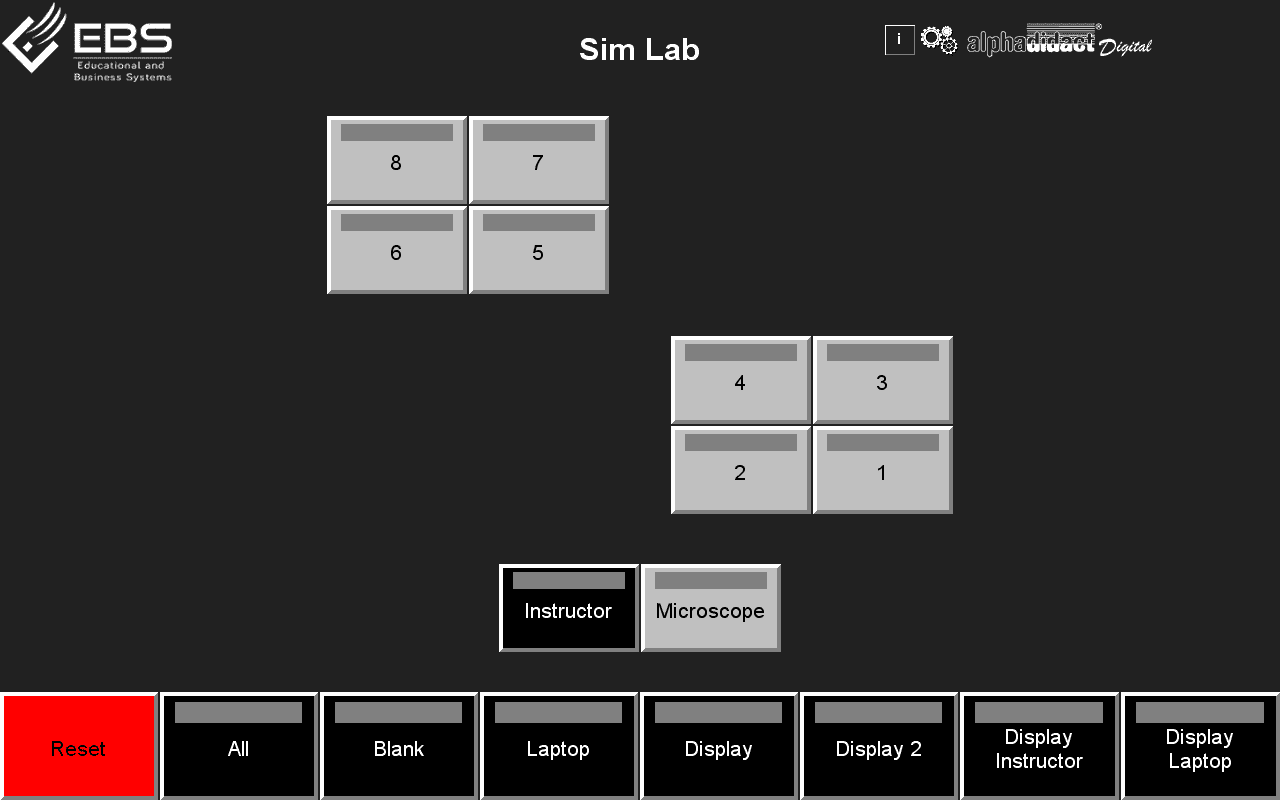

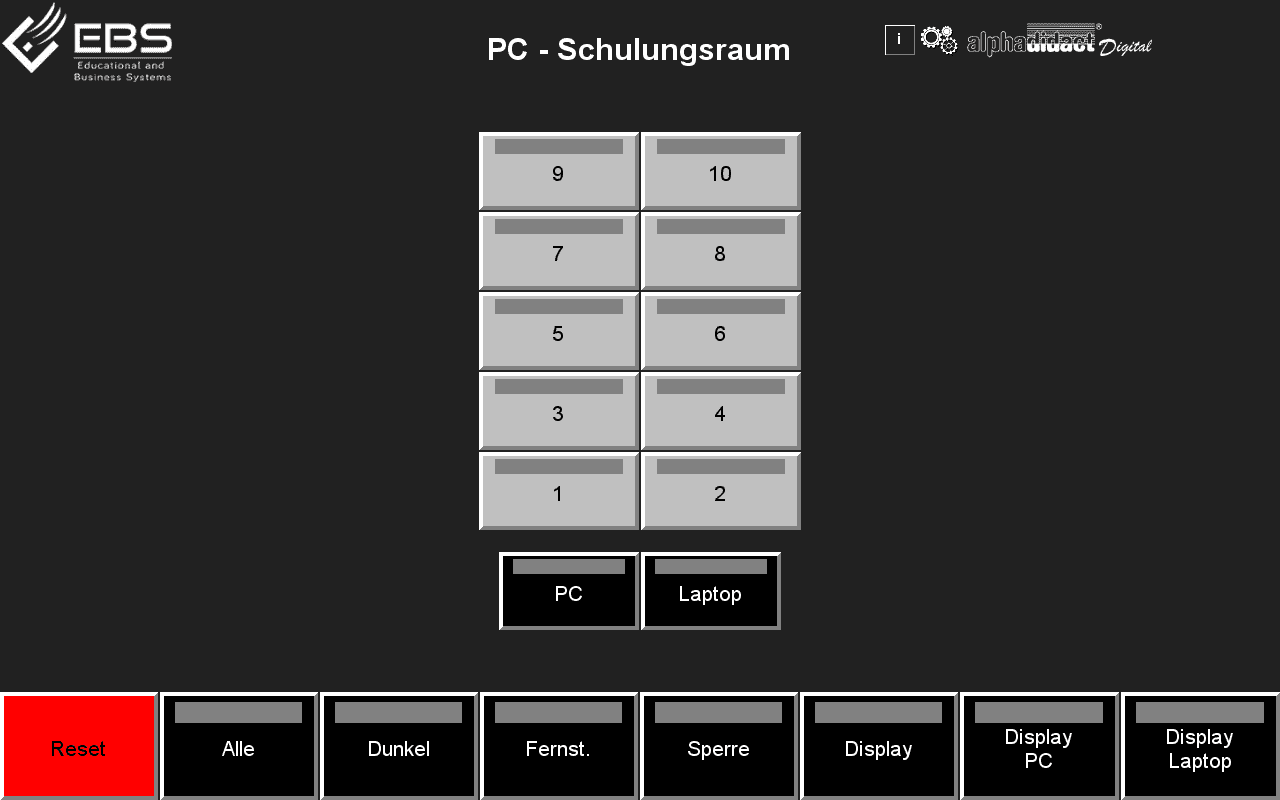

Seven rooms, seven interfaces
Each of these interfaces belongs to a room that was built. The number and arrangement of the seats, the labelling and the choice of function buttons come from the seating plan concerned.
Technical data
Touchscreen Core and Pro compared
Both variants carry the same interface. They differ in how far the control reaches beyond the training system.
- Variants
- Core and Pro
- Operation
- Seating plan as the interface, one button per workstation and function
- Interface
- Drawn up per room; arrangement, size and labelling freely determined
- Signal sources
- Instructor PC, notebook, camera, microscope and further sources as separate buttons
- Third-party equipment
- Pro only: projectors, displays, blinds, lighting, audio DSP
- Linked rooms
- Pro only
- Parallel operation
- Can run in sync with the tablet control
Details of dimensions and installation belong to the project planning and are given in the quotation.
Quotation
The interface grows out of the seating plan
For a quotation, the floor plan of the room, the number of workstations and the list of signal sources at the instructor position are enough.
Developed and manufactured in Heusenstamm near Frankfurt. Three years of warranty, optionally extended to five.
