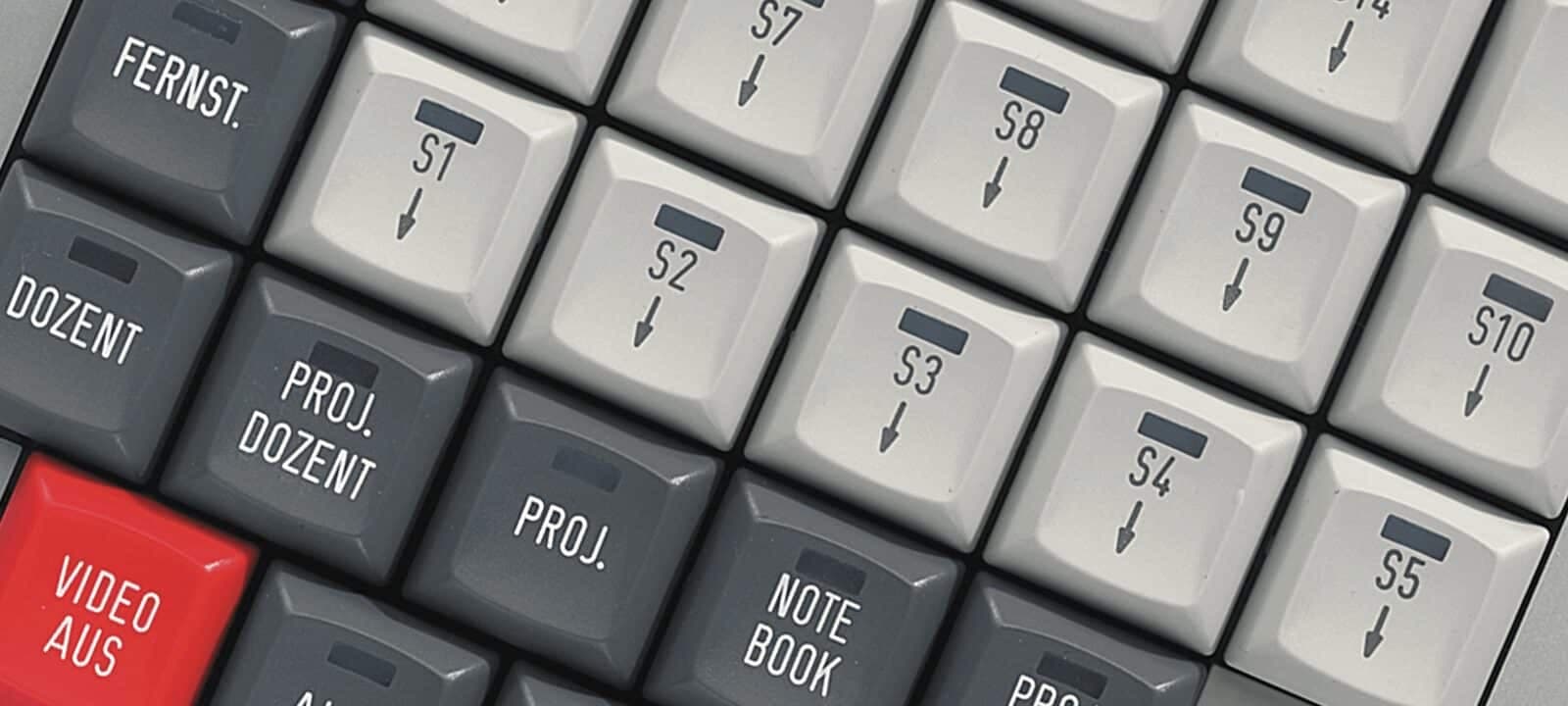

System keypad for the training room
Each button carries a workstation or a function; the layout follows the seating plan and does not change over the life of the installation.
System keypad
What separates a keypad from a panel
A system keypad is a control panel with permanently assigned buttons that switches a training system without an on-screen menu: one button stands for one workstation or one function, and its label stays the same.
The size of the keypad follows the number of seats. Several sizes are available so that the arrangement of the participant buttons matches the seating plan of the room and a workstation lies where it actually stands.
The keypad needs no power supply of its own and is built for continuous use in training rooms. Where a different instructor teaches every day and no briefing takes place, a fixed label carries further than a menu.
Button layout
The buttons follow the seating plan
The layout is settled before manufacture. Rows, blocks and numbering take over the arrangement of the room, so that the button on the far left switches the workstation on the far left. Added to these are the buttons for the signal sources at the instructor position and for the basic functions.
Discuss the seating plan
Continuous use
Robust and without a power supply of its own
The keypad works without a power adapter and has no display. In rooms that stay unchanged for years and in which operation has to be quick, it is often the calmer control element.
All control elements
Technical data
System keypad
The keypad is laid out and labelled for the room concerned; the details below apply to every size.
- Design
- Control panel with permanently assigned buttons, without a screen
- Button layout
- One button per workstation, plus buttons for sources and functions
- Sizes
- Several sizes, matching the number of seats and the seating plan
- Labelling
- Fixed, following the seating plan of the room
- Power supply
- None of its own required
- Operation
- One button press per function
Dimensions and installation depend on the number and arrangement of the seats and are given in the quotation.
Quotation
The layout is settled before manufacture
For a quotation, the number of workstations, their arrangement in the room and the sources present at the instructor position are enough.
Manufactured in Heusenstamm near Frankfurt. Three years of warranty, optionally extended to five.
